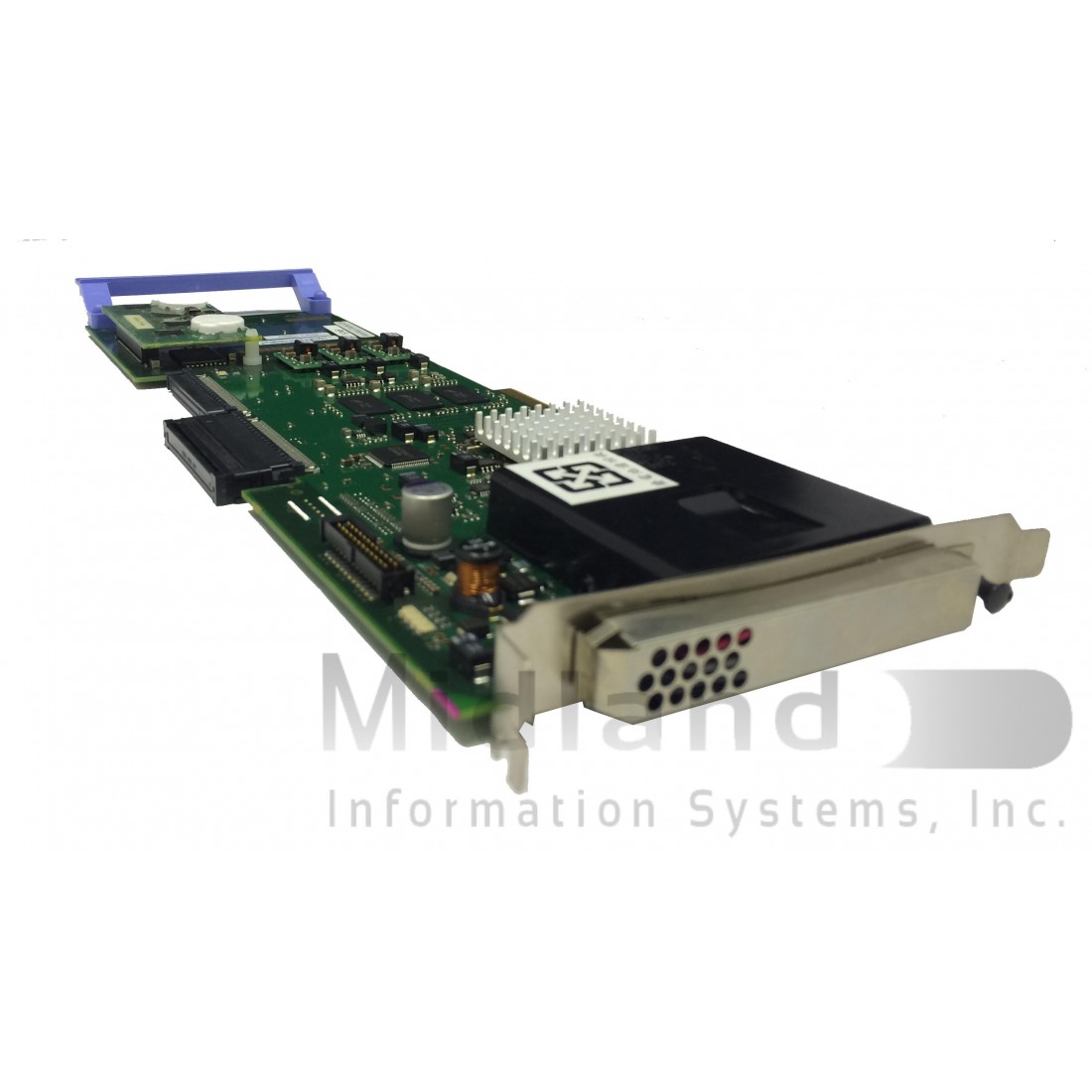

<p><font face="">#5700 PCI 1Gbps Ethernet IOA</font></p> <p><font face="">The #5700 is a PCI-X IOA that allows an iSeries server to attach to IEEE standard 802.3Z high speed (1Gbps) Ethernet LANs. A #5700 can also be used to connect to existing 100/10Mbps Ethernet LANs. This adapter supports a multimode fiber interface with a 62.5 micron or 50.0 micron cable requirement. The adapter has a duplex LC fiber-optic connector for attachment to customer-supplied cabling. </font></p><p><font face="">The #5700s only supports TCP/IP, and requires an intervening switch/hub/router when connection to 1Gbps or 100/10Mbps networks. </font></p><p><font face="">A #5700 is supported by a #2892 or #4810 Integrated xSeries Server. </font></p><ul><li><p><font face="">If a #5700 will be controlled/driven by a #2792 or #4810, then specify code #0226 (1Gbps Ethernet Specify) must be ordered. One #0226 for each #5700 controlled/driven by an integrated server. </font></p><p><font face="">#5700, #0620 and #6800 are physically the same adapter card but have different feature numbers to indicate to IBM configurator tools that an IOP is or is not being used in the configuration. </font></p></li><li><p><font face="">Attributes provided: 1000/100/10 Ethernet LAN Interface </font></p></li><li><p><font face="">Attributes required: One short or long, 3.3V or 5V PCI-X slot </font></p></li><li><p><font face="">For 9409-M50: (#5700) </font></p><ul><li><p><font face="">Minimum required: 0 </font></p></li><li><p><font face="">Maximum allowed: 94 (Initial order maximum: 94) </font></p></li><li><p><font face="">OS level required: i5/OS V5R4 with V5R4M5 Machine Code, or later </font></p></li><li><p><font face="">Initial Order/MES/Both/Supported: Supported </font></p></li><li><p><font face="">CSU: Yes</font></p></li></ul></li></ul> <p><font face="">The Gigabit Ethernet-SX PCI-X Adapter (FC 6800, 5700; CCIN 5700) is a high-performance, highly integrated, universal, Ethernet LAN adapter for PCI-X and PCI systems. The adapter provides 1000 Mbps throughput on a standard shortwave (850 nm) 50 or 62.5 micron multimode optical cable and conforms to the IEEE 802.3z standards and supports distances of 260 meters for 62.5u MMF and 550 meters for 50.0u MMF. The adapter is designed to run in standard PCI-X V1.0a compliant systems with 32 or 64-bit PCI-X Bus Master slots at 66 or 133 MHz, and in PCI 2.2 compliant systems with 32 or 64-bit PCI bus master slots at 33 or 66 MHz</font></p><p><font face="">Gigabit Ethernet-SX PCI-X adapter specifications</font></p><p><font face="">FRU number: 10N8586 (Designed to comply with RoHS requirement.)</font></p><p><font face="">I/O bus architecture: PCI 2.2 and PCI-X V1.0a compliant</font></p><p><font face="">Busmaster: Yes</font></p><p><font face="">Maximum number: For system-specific adapter placement information, see the PCI adapter placement for machine types 82xx and 91xx or the PCI adapter placement for machine type 94xx topic collections. </font></p><p><font face="">Adapter size: PCI short form</font></p><p><font face="">Connector information: LC fiber optic</font></p><p><font face="">Wrap plug: LC fiber optic, part number 12R9314</font></p><p><font face="">Cables: Customer supplied. Optional LC-SC converter cables are available:<br /><br /> * LC-SC 62.5 micron converter cable , part number 12R9322, FC 2459</font></p><p><font face=""> * LC-SC 50 micron use converter cable, part number 12R9321, FC 2456<br /><br />If you are installing a new feature, ensure that you have the software required to support the new feature and that you determine if there are any existing prerequisites. To do this, use the IBM Prerequisite Web site at <a href="%5C%22%5C%22%5C%22http://www-912.ibm.com/e_dir/eServerPrereq.nsf%5C%22%5C%22%5C%22" target="" title="">http://www-912.ibm.com/e_dir/eServerPrereq.nsf</a></font></p><p><font face="">Supported on the following models: 510, 51A, 515, 285, 52A, 55A, 505, 520, 525, 550, 561, 570, 575, 590, 595, 270, 8XX, M15, M25, M50, MMA, FHA, F2A, E4A, E8A, EMA</font></p><p><font face="">And the following Machine Types: 8203, 8204, 8234, 9110, 9111, 9113, 9115, 9116, 9117, 9118, 9119, 9125, 9131, 9133, 9405, 9406, 9407, 9408, 9409, 9411</font></p><p><font face="">Only available in refurbished condition as of May 29, 2009</font><br /></p>
