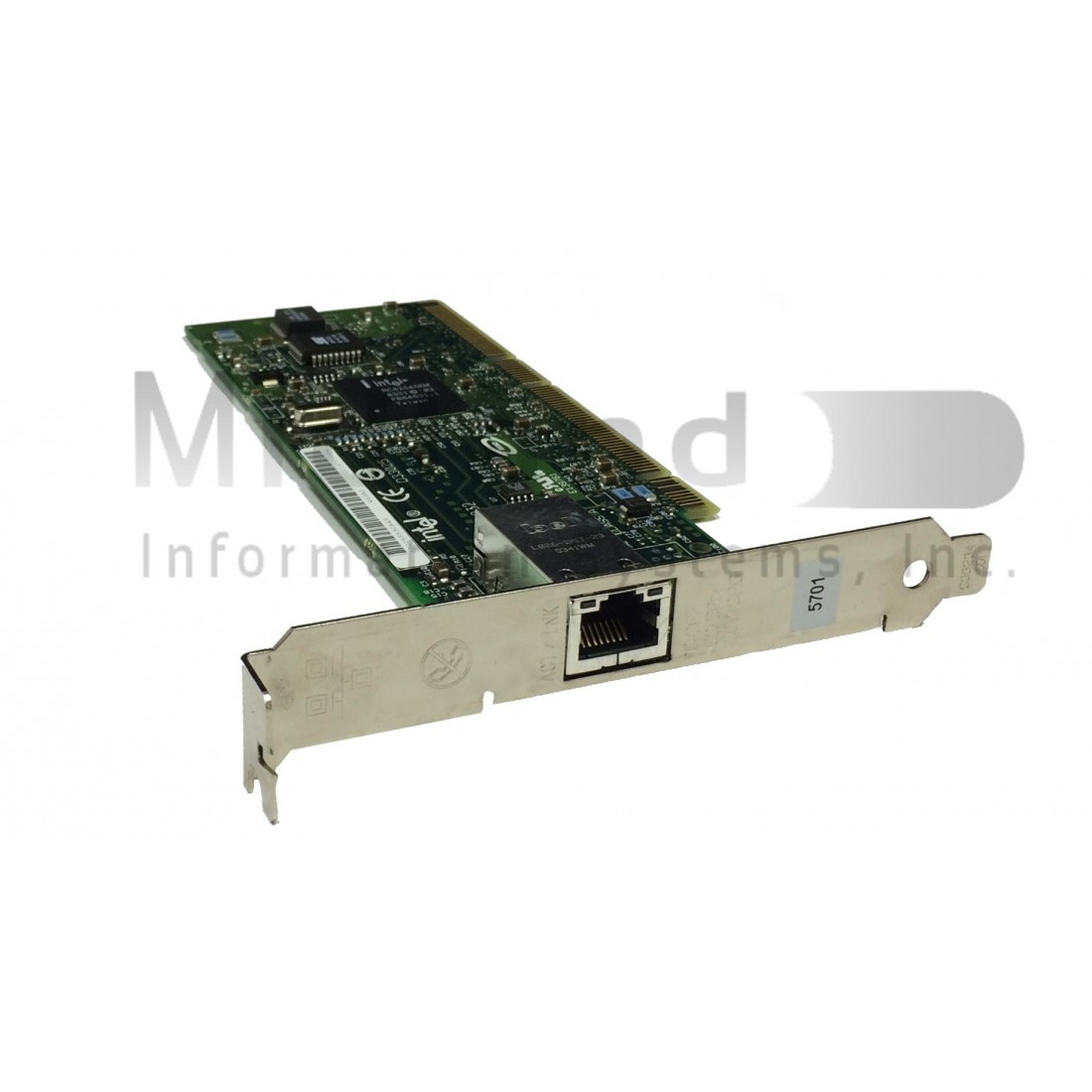

<h4>#5701 PCI 1Gbps Ethernet UTP IOA</h4> <p>#5701 provides PCI-X attachment to IEEE standard 802.3ab high-speed (1Gbps) Ethernet LANs. It can also be used to connect to existing 10Mbps or 100Mbps Ethernet LANs using switches with 10/100/ 1000Mbps ports. The adapter supports a UTP CAT 5 media interface, and only TCP/IP. </p><p>If #5701 is used with a #2792 or #2892, then one specify code #0226, 1Gbps Ethernet Specify, must be ordered for each #5701. </p><p>#6800 and #5700 are physically the same adapter card but have different feature numbers to indicate to IBM configurator tools that an IOP is or is not being used in the configuration. </p><p>#5701, #0621 and #6801 are physically the same adapter card but have different feature numbers to indicate to IBM configurator tools that an IOP is or is not being used in the configuration. </p><ul><li>Attributes provided: 1000/100/10 Ethernet LAN Interface </li><li>Attributes required: One short or long, 3.3V or 5V PCI-X slot </li><li>For 9409-M50: (#5701) <ul><li>Minimum required: 0 </li><li>Maximum allowed: 94 (Initial order maximum: 94) </li><li>OS level required: i5/OS V5R4 with V5R4M5 Machine Code, or later </li><li>Initial Order/MES/Both/Supported: Supported </li><li>CSU: Yes </li></ul></li></ul><p>The 10/100/1000 Base-TX Ethernet PCI-X adapter is a high-performance, highly integrated, universal Ethernet LAN adapter for PCI-X and PCI systems. The adapter provides 10/100/1000 Mbps connectivity using standard unshielded twisted pair (UTP) cable for distances of up to 100 meters. It conforms to IEEE 802.3ab 1000 Base-T standard. The adapter is designed to run in standard PCI-X V1.0a compliant systems with 32 or 64-bit PCI-X Bus Master slots at 66 or 133 MHz, and in PCI 2.2 compliant systems with 32 or 64-bit PCI bus master slots at 33 or 66 MHz. The adapter runs on 5.0 V and 3.3 V aux.</p><p>10/100/1000 Base-TX Ethernet PCI-X adapter specifications<br /><br />FRU number:<br /><br /> 5701 is 03N6524* or 00P6130**<br /> 1979 is 03N6525* or 80P6445**<br /> 1959 is 03N6526* or 03N4700**<br />* Designed to comply with RoHS requirement.<br />** Not designed to comply with the RoHS requirement.<br /><br />I/O bus architecture: PCI 2.2 and PCI-X V1.0a compliant<br /><br />Busmaster: Yes<br /><br />Maximum number: For system-specific adapter placement information, see PCI placement in the system unit or expansion unit in the PCI adapter topic.<br /><br />Adapter size: PCI short form<br /><br />Connector information: RJ-45<br /><br />Wrap plug: RJ-45, part number 03N6070* or 00G2380**<br /><br />Blind swap cassette, spacer bracket FRU number: 10N8972<br /><br />For use with generation 2.5 cassettes (16R0091), or earlier<br /><br />Cables: For best performance, use cables that meet Cat 5e cabling standards, or higher. Customers supply the cables. <br /></p><p>Only available as refurbished as of May 29, 2009.</p>
