<p>IBM Power7 8202-E4B (#5877) - 12X I/O Drawer PCIe, No Disk</p>
<p> </p>

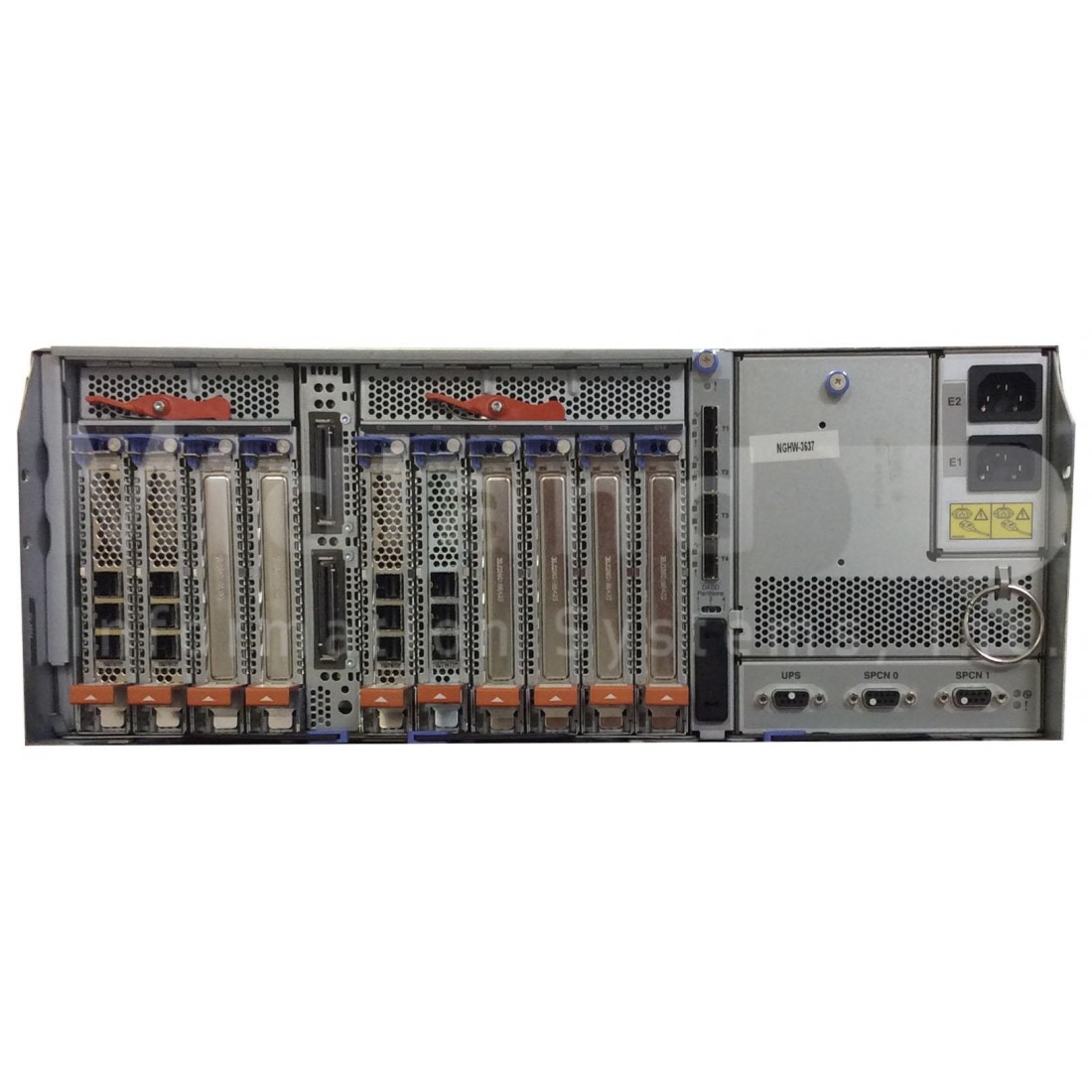

<p>This feature provides a 4U high I/O drawer containing ten PCIe slots. This drawer attaches to the central electronics complex via 12X DDR cables (#1862, #1864 or #1865).</p>
<p>Attributes provided: 10 PCIe Slots</p>
<p>Attributes required: Available 12X connection ports.</p>
<p>For 8202-E4B: (#5877)</p>
<p>Minimum required: 0</p>
<p>Maximum allowed: 2 (Initial order maximum: 2)</p>
<p>OS level required:</p>
<p>AIX Version 5.3 supported</p>
<p>AIX Version 6.1 supported</p>
<p>AIX Version 7.1 supported</p>
<p>IBM i 6.1 supported</p>
<p>IBM i 7.1 supported</p>
<p>SUSE Linux supported</p>
<p>Red Hat Linux supported</p>
<p>Refer to Software Requirements for specific O/S levels supported</p>
<p>Initial Order/MES/Both/Supported: Both</p>
<p>CSU: Yes</p>
<p>Return parts MES: No</p>
